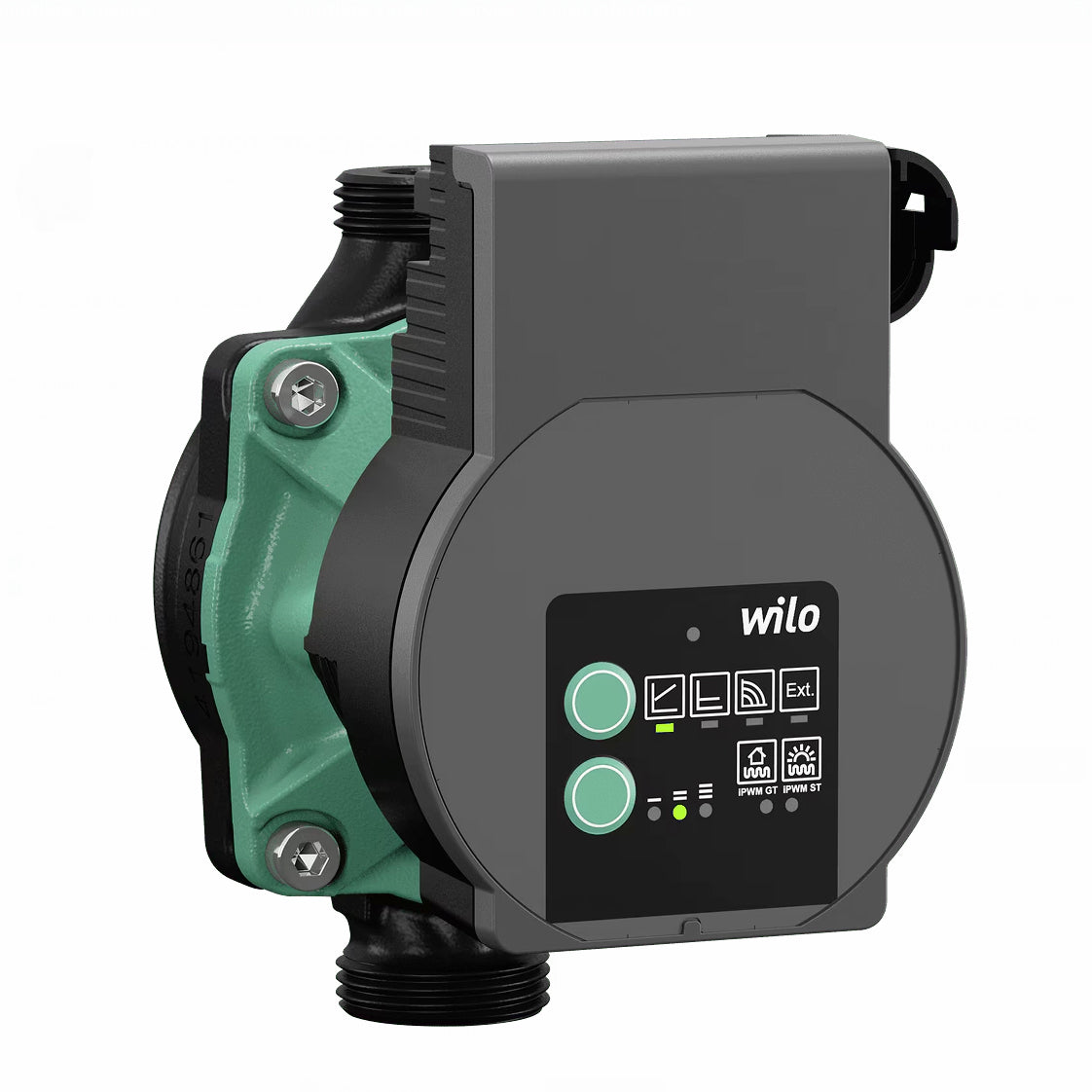

[Wilo] Varios PICO 25/-7-130 & Union

$586.36 AUD incl. GST
$586.36 AUD incl. GST
Sale Sold out
Tax included.
In stock (100 units), ready to be shipped
  • Heading
  • Heading
  • Heading
  • Heading
View Product Details

Product details

The Wilo Varios PICO-STG 25/1-7-130 is an electronically controlled circulation pump for heating, air-conditioning, solar and geothermal systems. Its glandless design combines an ECM motor with integrated electronic control to adjust pump operation to the application.

Selectable differential-pressure, constant-speed and external iPWM control modes provide several ways to manage circulation. The LED display shows the selected settings and operating status, while manual venting, restart and the sync function support setup and replacement work.

Product Specifications

Features

Control modes

  • Constant differential pressure (Δp-c) with three pre-defined pump curves.
  • Variable differential pressure (Δp-v) with three pre-defined pump curves.
  • Constant speed with three selectable stages.
  • External control by iPWM GT or iPWM ST signal.

Display and adjustment

  • LED display for the selected control mode, pump curve and operating or fault status.
  • Manual pump venting and manual restart functions.
  • Sync function for adapting settings when replacing an existing pump.

Electrical and installation specifications

  • Single-phase power supply: 230 V ±10%, 50/60 Hz.
  • Maximum power consumption: 50 W.
  • Maximum operating pressure: 10 bar.
  • Threaded pump connections: G 1½; nominal connection size DN 25 (Rp 1).
  • Port-to-port installation length: 130 mm.

Construction

  • Cataphoretically coated grey cast iron pump housing.
  • PP-GF40 impeller and stainless steel shaft.
  • Integrated motor protection and automatic deblocking function.

Ordering Information

Check the required installation length, threaded connections, pump duty and control method before ordering. For replacement enquiries, provide the full model and article number of the existing pump.

Confirm the required union fittings and other installation accessories with us before purchase.

Ordering / Size Information

Ordering / Size Information
Manufacturer modelManufacturer article numberPort-to-port length (mm)Pump connectionPower supply
Varios PICO-STG 25/1-7-1304215541130G 1½ / DN 25 (Rp 1)1~230 V ±10%, 50/60 Hz
