Viessmann Vitocal 150-A Product Brochure
VIEW
Product details

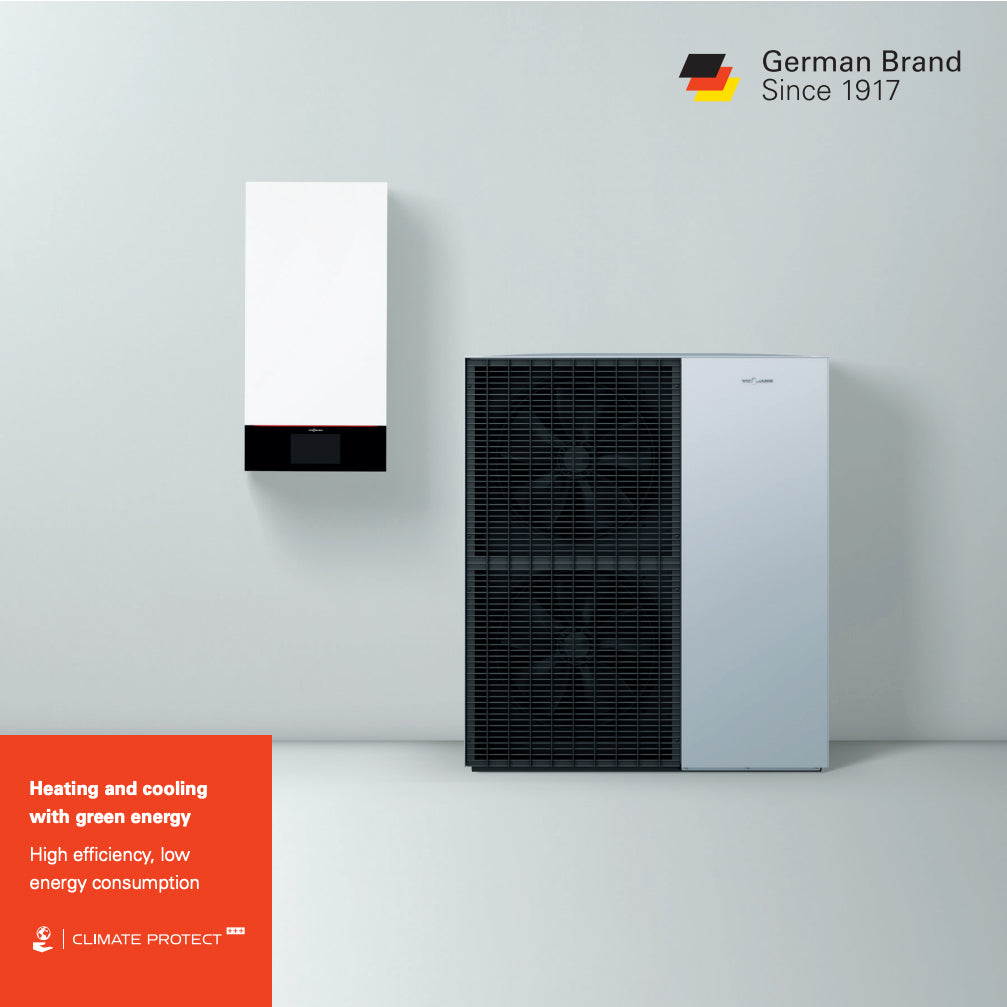

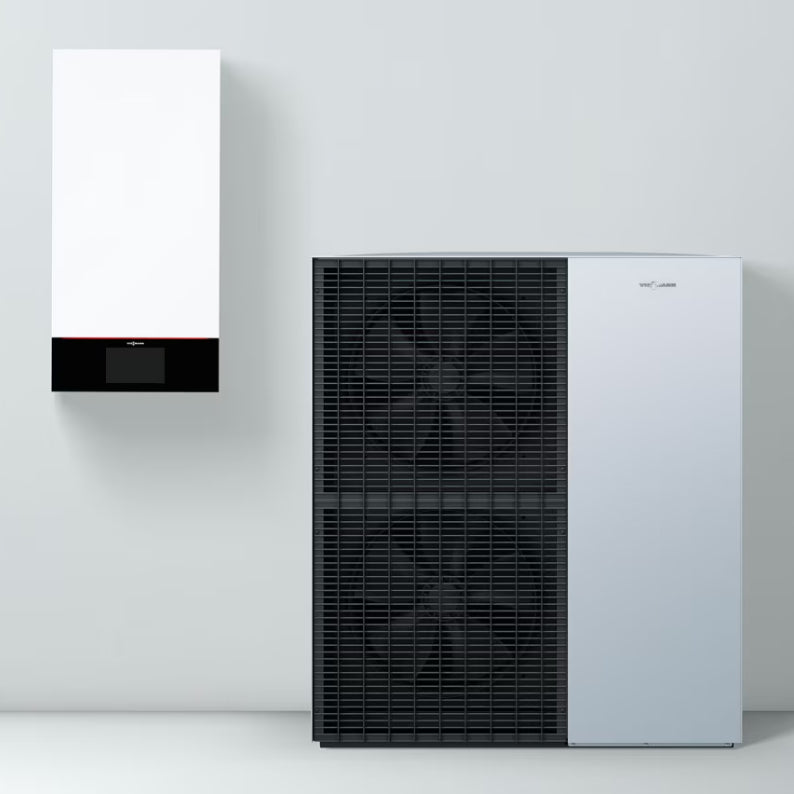

The Viessmann Vitocal 150-A is an air source hydronic heat pump for room heating, cooling and indirect domestic hot water heating. Designed for modernisation projects, it uses natural R290 refrigerant and an inverter-controlled compressor in a monoblock outdoor unit.
The indoor hydrobox integrates key hydraulic components, including a 16-litre heating water buffer and a 10-litre expansion vessel. A 7-inch colour touchscreen provides local control, while integrated Wi-Fi enables operation through the ViCare app when connected to the internet. Domestic hot water heating requires a separate compatible cylinder.
Available to order
This item is ordered from our supplier after you place your order.
Product Specifications
- Features
Ordering Information
Ordering / Size Information
| Model | Store SKU | Power supply | Heating output A7/W35 (kW) | Heating output A-7/W35 (kW) | COP A7/W35 | Cooling capacity A35/W18 (kW) |
|---|---|---|---|---|---|---|
| A10 | Z023212 | 230 V / Single phase | 7.3 | 9.7 | 5.0 | 9.6 |
| A13 | Z023213 | 230 V / Single phase | 8.1 | 11.1 | 4.9 | 11.0 |
| A16 | Z023214 | 230 V / Single phase | 9.1 | 12.4 | 4.9 | 13.2 |
| A10 | Z023215 | 400 V / Three phase | 7.3 | 9.7 | 5.0 | 9.5 |
| A13 | Z023216 | 400 V / Three phase | 8.1 | 11.1 | 4.9 | 11.2 |
| A16 | Z023217 | 400 V / Three phase | 9.1 | 12.4 | 4.9 | 13.3 |
