[SmartHeat] S-Mat (150w/sqm) 2.5mm Electrical Underfloor Heating DIY Kit with Wi-Fi Thermostat
$388.52 AUD incl. GST
$388.52 AUD incl. GST
Sale
Sold out
Tax included.
In stock (29 units), ready to be shipped
Couldn't load pickup availability
- Heading
- Heading
- Heading
- Heading
About the Product
SmartHeat Electrical Underfloor Heating DIY Kit with Wi-Fi Thermostat
- Available size (sqm): 1.0 / 1.5 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 5.0 / 6.0 / 7.0 / 8.0 / 9.0 / 10 / 12
- 2.5mm thin heating cable (perfect for thin screed installation)
- Two point connection
- Single conductor cable
- Safety approved for the wet areas
- Flexible installation
- Durable construction
- Wi-Fi digital thermostat allows for remote connection via Wi-Fi from your phone to the thermostat controller.
- 20-years limited warranty against manufacturing defects
- The MINIMAT floor warming system includes a red heating cable
woven into an adhesive-backed red fiberglass mesh that allows for
simple roll-out installation without worrying about heating cable spacing
Ordering Size Information
| Kit Reference | Heated Area (m²) | Mat Dimensions (m × m) | Output (W) | Current (A) | Resistance (Ω) |
|---|---|---|---|---|---|
| SHMATK 150-1.0 | 1.0 | 0.5 × 2 | 150 | 0.65 | 353.8 |
| SHMATK 225-1.5 | 1.5 | 0.5 × 3 | 225 | 0.98 | 235.7 |
| SHMATK 300-2.0 | 2.0 | 0.5 × 4 | 300 | 1.3 | 176.9 |
| SHMATK 375-2.5 | 2.5 | 0.5 × 5 | 375 | 1.63 | 141.5 |
| SHMATK 450-3.0 | 3.0 | 0.5 × 6 | 450 | 1.96 | 118 |
| SHMATK 525-3.5 | 3.5 | 0.5 × 7 | 525 | 2.28 | 102 |
| SHMATK 600-4.0 | 4.0 | 0.5 × 8 | 600 | 2.61 | 88.1 |
| SHMATK 750-5.0 | 5.0 | 0.5 × 10 | 750 | 3.26 | 70.6 |
| SHMATK 900-6.0 | 6.0 | 0.5 × 12 | 900 | 3.91 | 58.8 |
| SHMATK 1050-7.0 | 7.0 | 0.5 × 14 | 1050 | 4.57 | 50.3 |
| SHMATK 1200-8.0 | 8.0 | 0.5 × 16 | 1200 | 5.22 | 44.1 |
| SHMATK 1350-9.0 | 9.0 | 0.5 × 18 | 1350 | 5.87 | 39.2 |
| SHMATK 1500-10.0 | 10.0 | 0.5 × 20 | 1500 | 6.52 | 35.3 |
| SHMATK 1800-12.0 | 12.0 | 0.5 × 24 | 1800 | 7.83 | 29.4 |

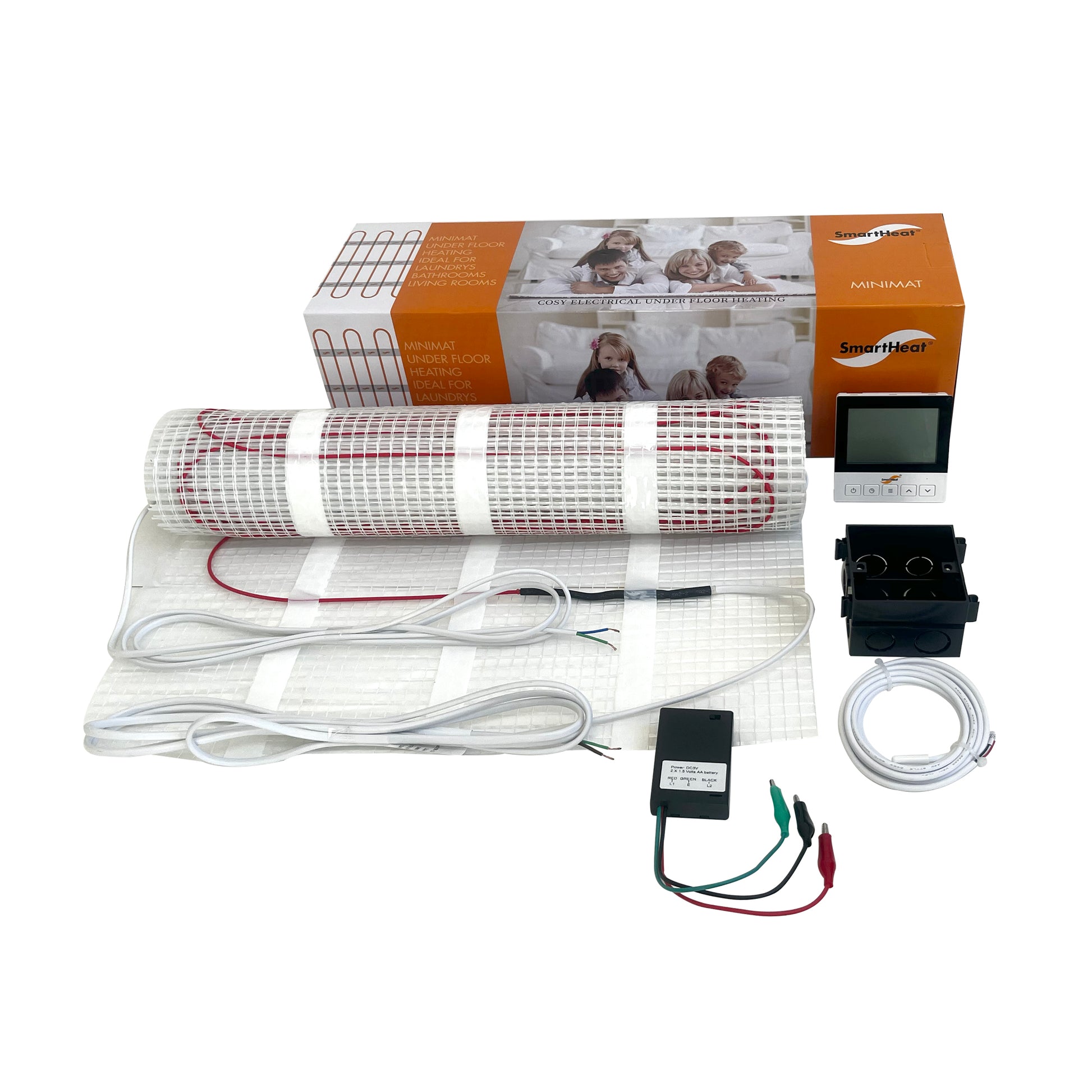

DIY Kit comes with
- SmartHeat Wi-Fi Room Thermostat
- Floor Temperature Sensor
- Screamer Warning Device
- Wall mounting box
Thermostat Specifications
| Functions | On/Off control, digital display, 7-day programmable |
| Supply Voltage | 230±15%, 50/60Hz with battery back up |
| Maximum switching current | 16Amp |
| Room temperature range | 5 to 60 ℃ |
| Floor temperature range | 5 to 35 ℃ |
| Floor temperature sensor | 2-wire, 3m lead wire |
| Dimensions | 86mm x 86mm x 16mm |
Warranty
Thermostat: 1 year Cable/Mat: 20-year limited warranty against manufacturing defects.
Thermostat: 1 year Cable/Mat: 20-year limited warranty against manufacturing defects.
