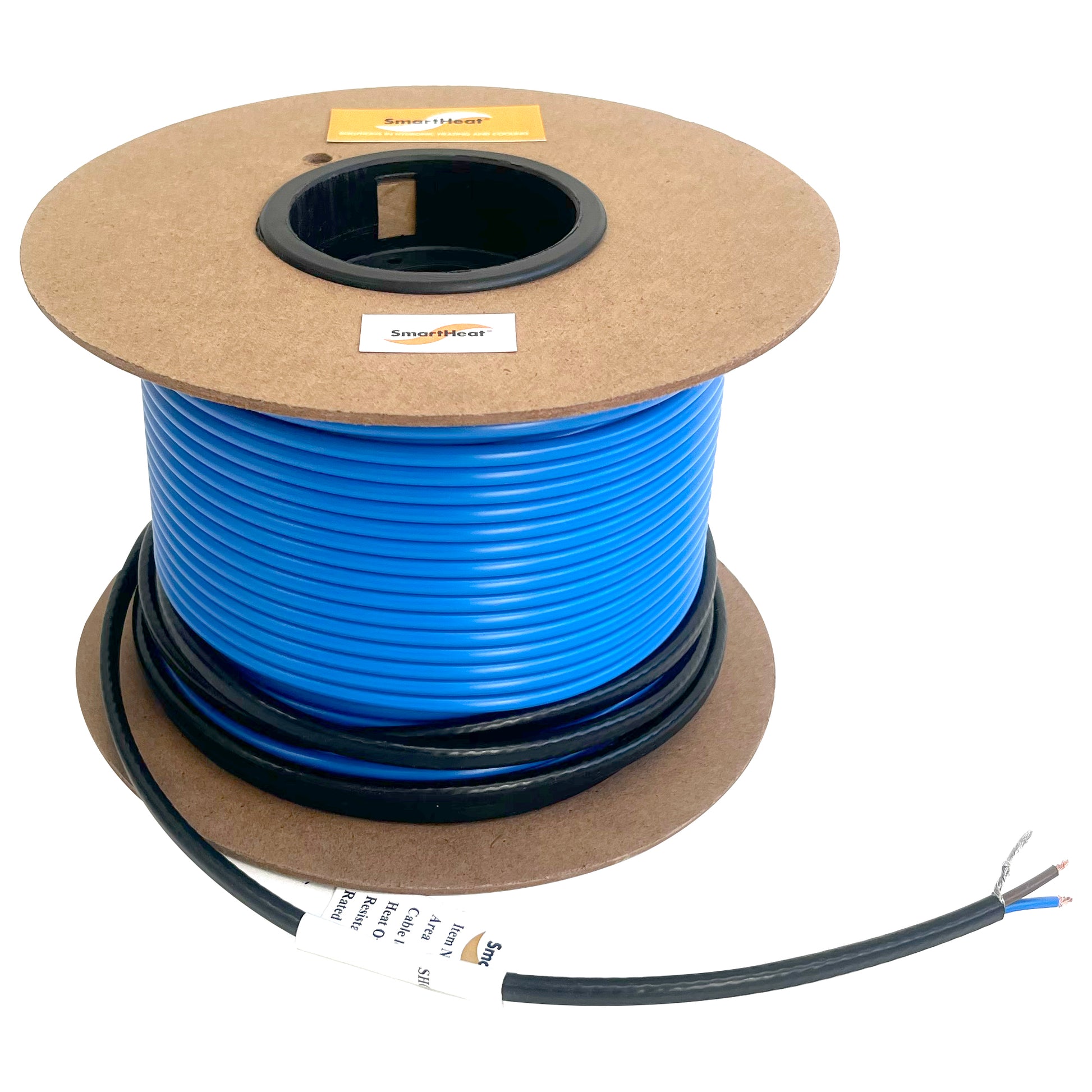

[SmartHeat] In-Screed Electric Heating Cable (with Single Cold Tail)

The In-Screed Heating Cable is specifically designed for in-screed applications and is ideal for use under tiled floors or thin leveling beds. This cable emits very low electromagnetic fields (EMF) and features a single cold tail for ease of installation. The cable provides consistent and efficient heating, making it suitable for a variety of floor types where direct heat transfer is required. The In-Screed Heating Cable delivers 20 watts per meter, resulting at 230 volts.

To optimize performance and ensure uniform heat distribution, it is recommended to use a suitable screed layer during installation.

• 15-year warranty
• Output power: 1400 watts (20 W/m)
• Operating Voltage: 230 volts
• Maximum Operating Temperature: +70°C

Technical Features

Construction

• Cable Core: Twin conductor; multi-stranded
• Insulation: Two layers of PET foil and a fluoropolymer layer surrounding each core, all embedded within a cross-linked polyethylene outer layer
• Outer Sheath: PVC
• Outer Cable Diameter: 5.0 – 5.4mm

Electrical Properties

• Rated Voltage: 230 V
• Watts Per Meter: 20 W/m

Heating Properties

• Maximum Permitted Operating Temperature: +70°C
• Minimum Installation Temperature: -15°C

APPLICATION
In-screed heating on concrete floors   ✓
In-screed heating on FC sheet ✓
Feezers (frost heavy protection)   ✓
Frost protection   ✓
Ice and snow melting  ✓
Heating directly under tiles    ✗
Heating of wooden floors       ✗
In-slab (storage) heating in concrete floors    ✗
