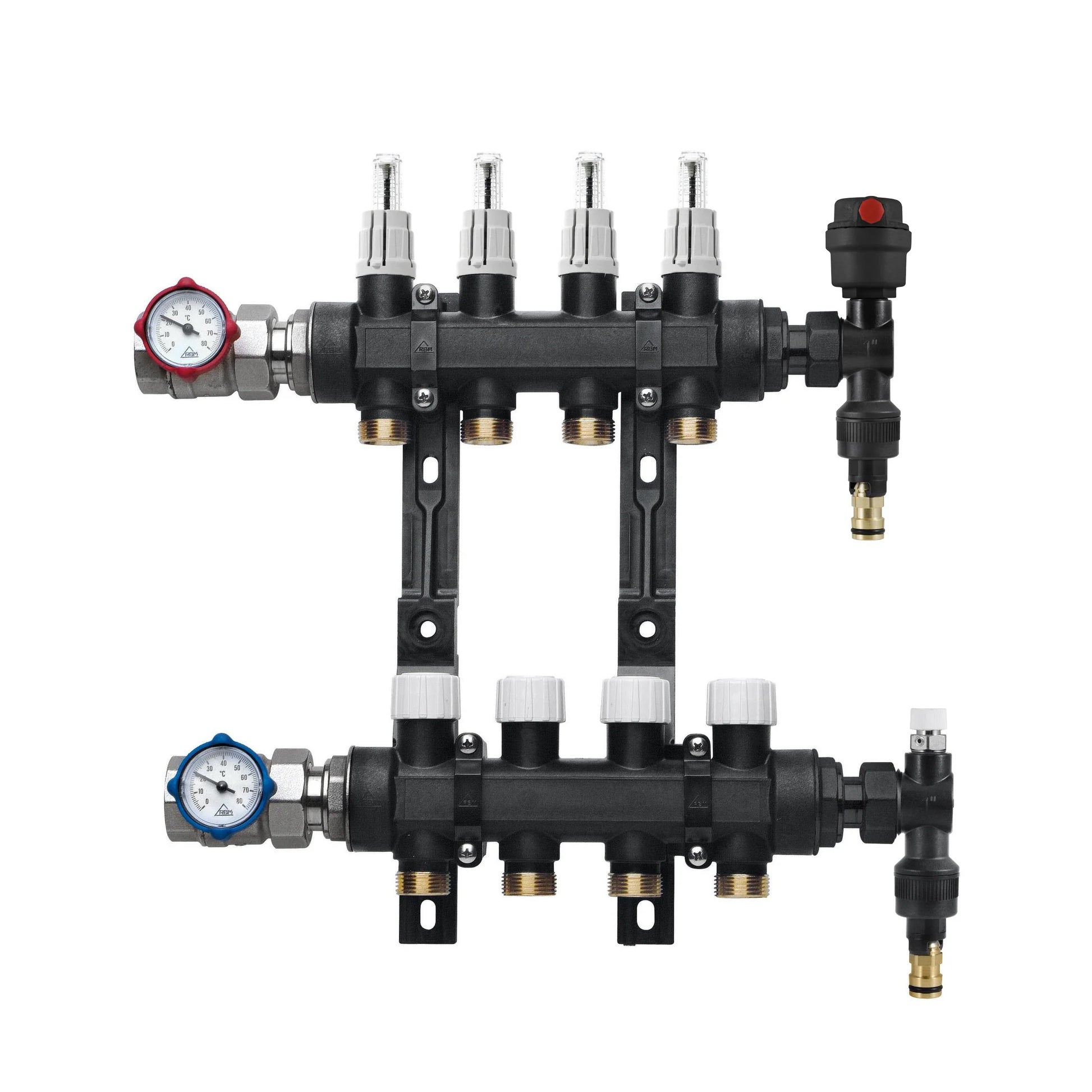

[RBM] Polymer Compact Manifold Kit
$399.85 AUD + GST
$399.85 AUD + GST
$499.83 AUD
Sale
Sold out
Only 5 units left
Couldn't load pickup availability
- Heading
- Heading
- Heading
- Heading
About the Product
Series 1410.D
Compact polymer manifolds kit.
| Each kit contains: |
| n° 1 multi-way manifold unit complete with flow meters with lockshield and flow indicator function; |
| n° 1 multi-way manifold unit complete with valves with thermostatic option with hand wheel; |
| 1 pair of plastic brackets for fixing manifolds; |
| n° 2 1" ball valves with built-in thermometer 0÷80 °C; |
| n° 2 union fittings; |
| 1 x 1" air / water automatic discharge terminal unit; |
| n° 1 manual 1" air / water discharge terminal unit. |
| Temperature range 5÷80 °C |
| Max. operating pressure 8 Bar |
| Code | Measure | Ways | Pack | Outer | Cat. |
| 1410.06.20 | 1" | 2+2 | 1 | 1 | 30.01 |
| 1411.06.20 | 1" | 3+3 | 1 | 1 | 30.01 |
| 1412.06.20 | 1" | 4+4 | 1 | 1 | 30.01 |
| 1413.06.20 | 1" | 5+5 | 1 | 1 | 30.01 |
| 1414.06.20 | 1" | 6+6 | 1 | 1 | 30.01 |
| 1415.06.20 | 1" | 7+7 | 1 | 1 | 30.01 |
| 1416.06.20 | 1" | 8+8 | 1 | 1 | 30.01 |
| 1417.06.20 | 1" | 9+9 | 1 | 1 | 30.01 |
| 1418.06.20 | 1" | 10+10 | 1 | 1 | 30.01 |
| 1419.06.20 | 1" | 11+11 | 1 | 1 | 30.01 |
| 1420.06.20 | 1" | 12+12 | 1 | 1 | 30.01 |
| 1420.13.20 | 1" | 13+13 | 1 | 1 | 30.01 |
| 1420.14.20 | 1" | 14+14 | 1 | 1 | 30.01 |
Centre distance connections through 50mm distribution -EUROCONUS G3/4" UNI-EN-ISO 228 threading
Download Data Sheet
