RBM ECOMIX RF Fixed Point Mixing Pump Station

$1,736.43 AUD incl. GST
$1,736.43 AUD incl. GST
Sale Sold out
Tax included.
Only 5 units left
  • Heading
  • Heading
  • Heading
  • Heading
View Product Details

Product details

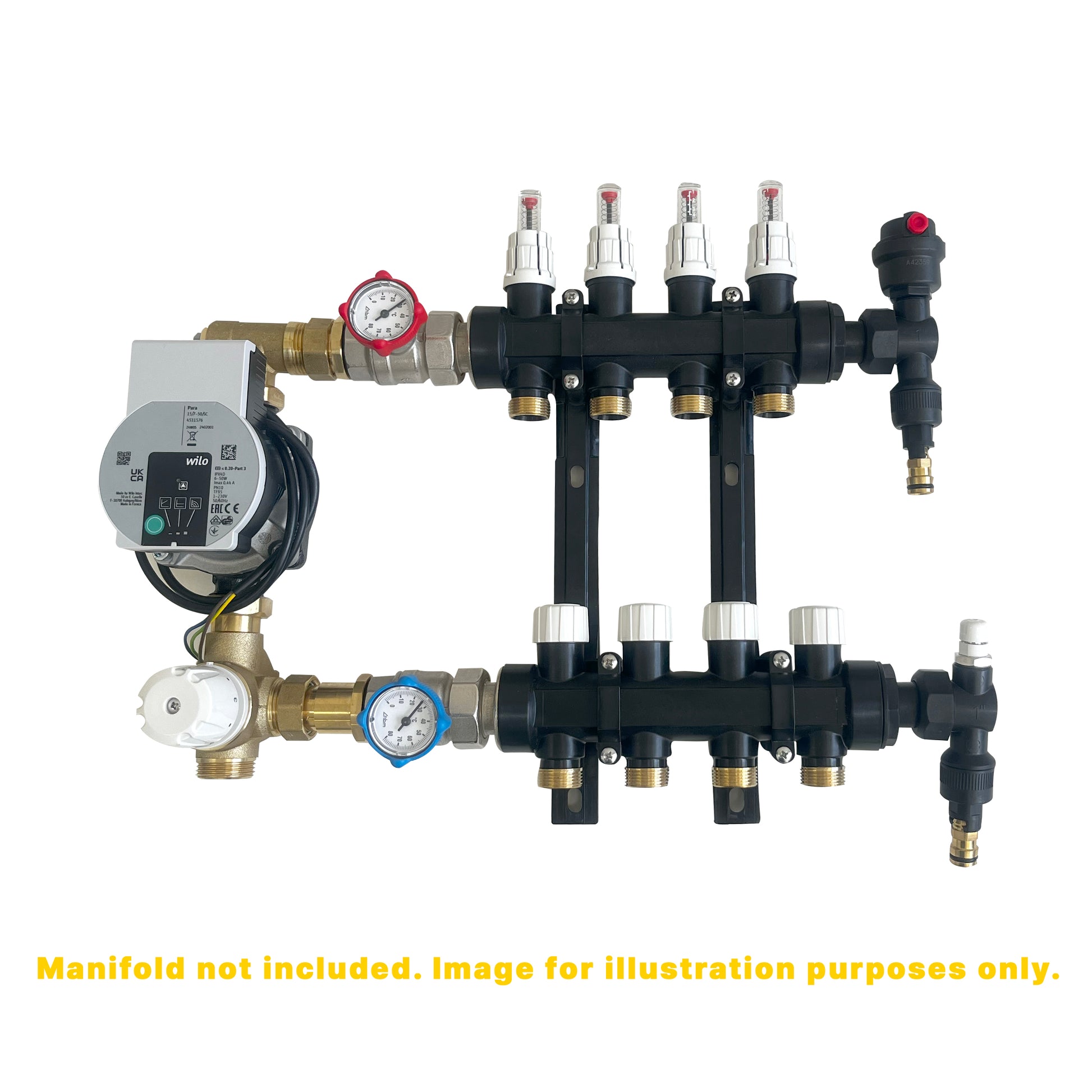

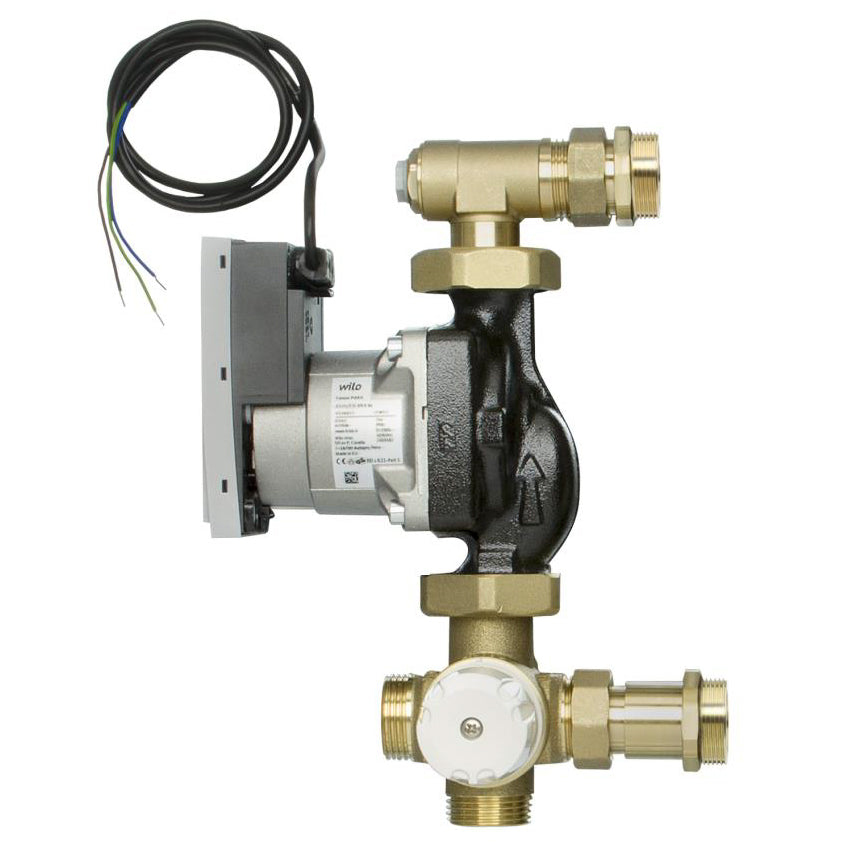

The RBM ECOMIX RF combines a circulation pump and thermostatic mixing valve to supply low-temperature hydronic underfloor heating circuits. It mixes system supply and return water to regulate the temperature delivered to the floor heating manifold.

The unit provides variable-flow circulation and manual temperature adjustment, with G1-inch male connections for compatible RBM manifold installations.

Product Specifications

Features

Mixing and circulation

  • Includes a variable-flow circulation pump and thermostatic mixing valve.
  • Manual temperature adjustment using the mixer’s numbered control knob.

Connections

  • G1-inch male connections to UNI-EN-ISO 228.
  • Designed for compatible compact brass manifolds or 2–13-circuit polymer manifold configurations.

Thermostatic mixer specifications

  • Working fluid: water.
  • Temperature setting range: 30–60°C.
  • Temperature accuracy: ±2°C.
  • Maximum inlet temperature: 90°C.
  • Maximum dynamic pressure: 5bar (500kPa).
  • Maximum static pressure: 10bar (1000kPa).
  • Maximum inlet pressure ratio: 2:1.
  • Minimum inlet-to-outlet temperature difference: 10°C.

Ordering Information

Confirm the manifold model and connection arrangement before ordering. Manifolds and containment cabinets are separate accessories.

For recessed installations, the accessory cabinet must provide a minimum depth of 130mm to accommodate the mixing module.

Ordering / Size Information

Ordering / Size Information
System ConnectionsTemperature Setting (°C)
G1" male30–60
