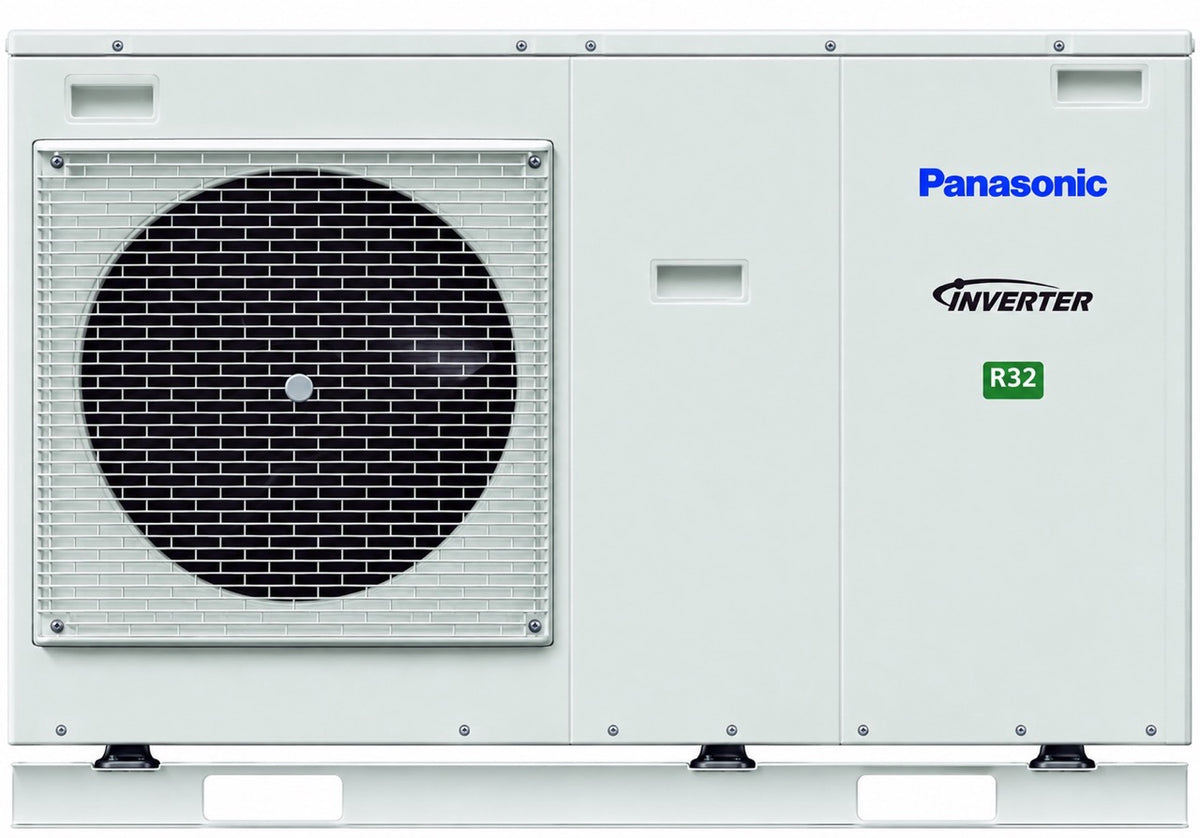

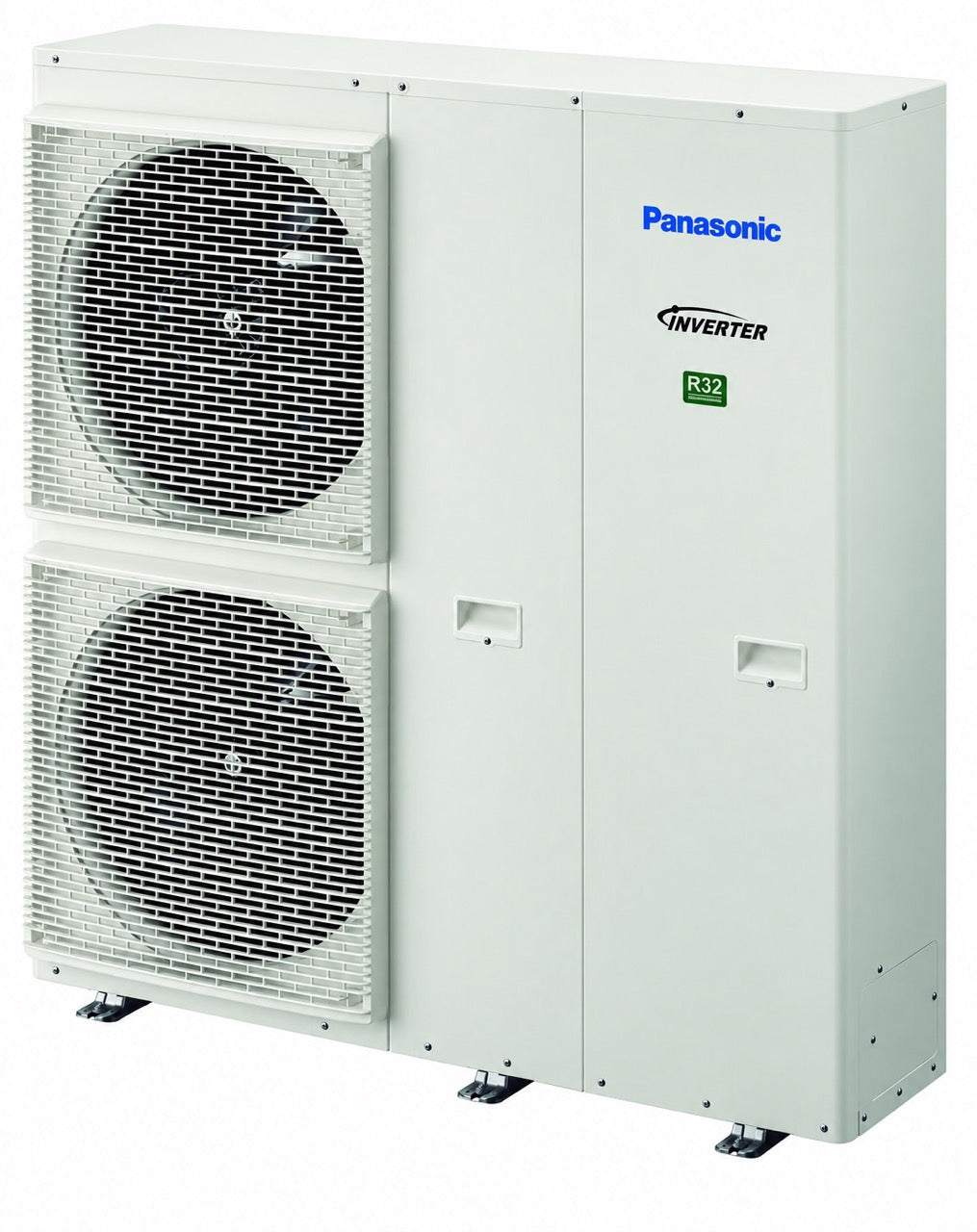

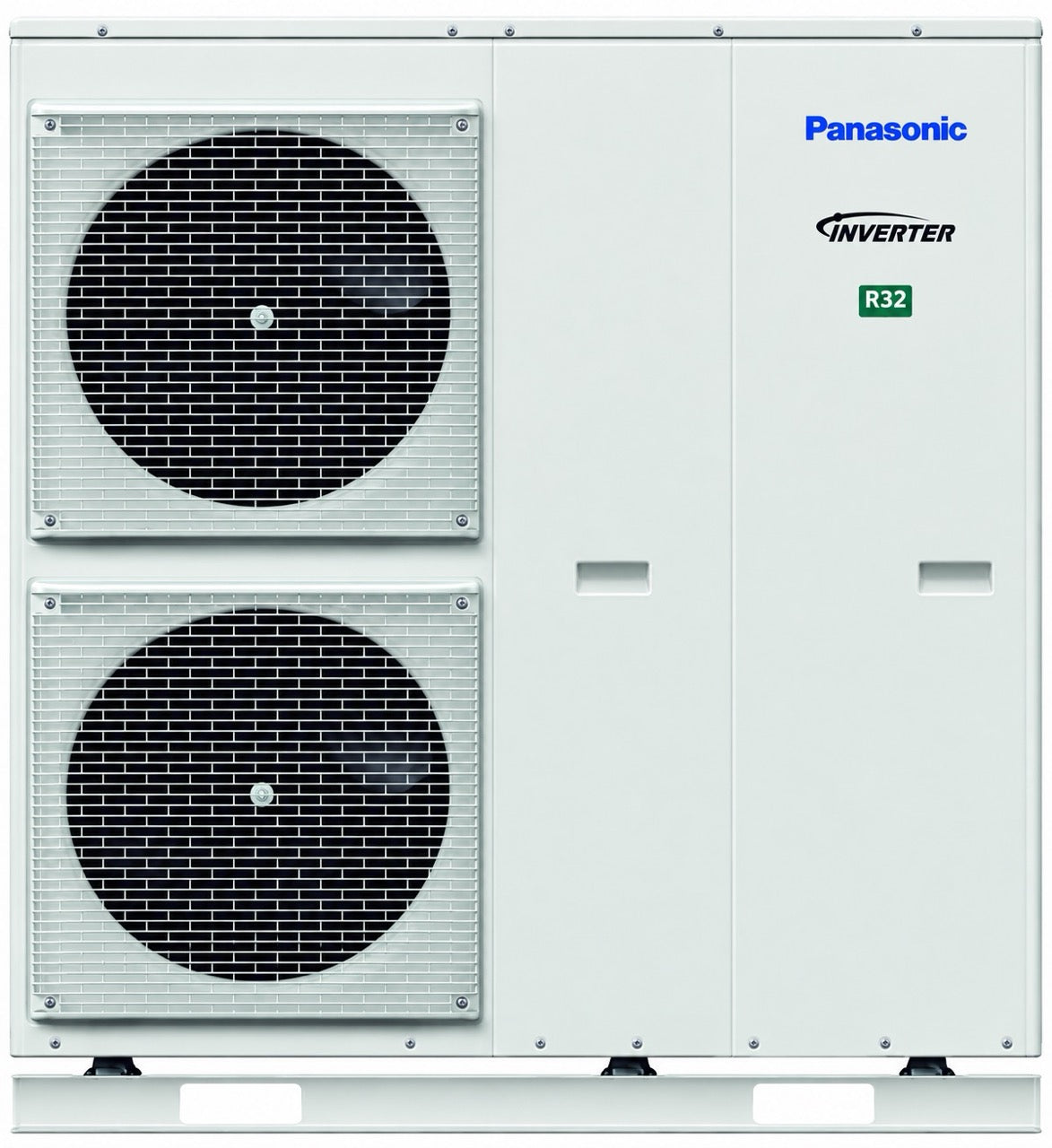

Panasonic J Series Monobloc Air-to-Water Heat Pump

Heat pump

• Panasonic J Series monobloc air-to-water heat pump.
• R32 refrigerant.
• Designed for hydronic underfloor heating, low-temperature radiators and compatible domestic hot water systems.
• Heating and cooling operation with a compatible system.
• Refrigerant circuit contained within the outdoor unit; no separate indoor hydrokit required.

Model range

• Standard models: 9kW and 16kW, single phase.
• T-CAP models: 9kW and 12kW, single phase; 16kW, three phase.
• Model-specific performance, dimensions and net weights are listed in the Ordering Information table.

T-CAP performance

• T-CAP models are designed to maintain nominal heating capacity down to −20°C outdoors at a 35°C flow temperature, without electrical booster assistance.
• This capacity-retention feature applies to T-CAP models only.
• Outlet water temperatures up to 65°C under specified conditions: outdoor temperature of 5°C to 20°C and a 15°C ΔT setting. Heating capacity reduces at 65°C.

Controls

• Weekly timer and energy monitoring.
• Operating mode selection, including automatic, powerful and quiet modes.
• Installer settings for system configuration, heating and cooling operation, and dry concrete mode.

Optional accessories

• CZ-TAW1B cloud interface for remote control and monitoring through wired or wireless LAN.
• CZ-NS4P PCB for advanced functions on compatible H and J Generation systems.
• Cloud interface and advanced-function PCB are optional accessories, not standard inclusions.
