Product details

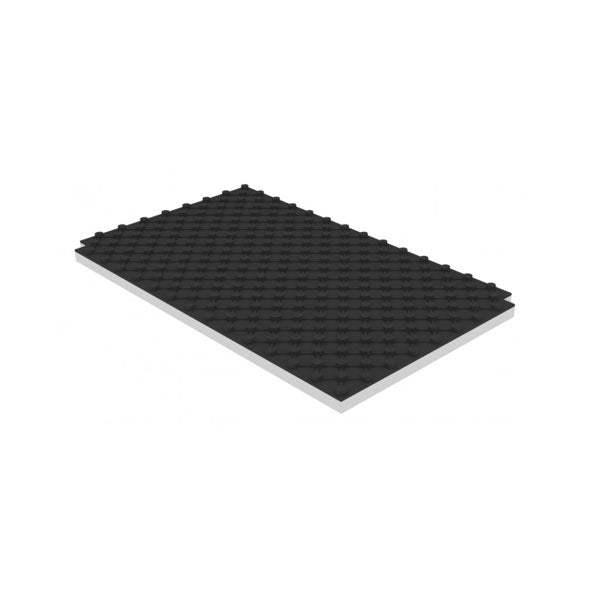

The Profi System Duo Board with Insulation is designed for hydronic underfloor heating, combining an insulated base with a profiled surface that holds heating pipes in position. The board provides thermal and acoustic insulation, with improved non-slip surface properties.
Suitable for 14–17mm heating pipes, the regularly spaced nubs provide a 50mm pipe-layout grid. Two board specifications are available: EPS 150 in 1400 × 800 × 11mm, allowing selection to suit the floor build-up and system requirements.
Product Specifications
- Features
Ordering Information
Ordering / Size Information
| Product code | Material | Board dimensions X × Y × Z (mm) | Pipe diameter (mm) | Boards per pack | Coverage per pack (m²) | Net weight per board (kg) | Thermal conductivity (W/(m·K)) | Heat stability (°C) |
|---|---|---|---|---|---|---|---|---|
| F-065981 | EPS 150 | 1400 × 800 × 11 | 14–17 | 14 | 15.68 | 1.225 | 0.035 | 80 |
| F-065998 | EPS T 040 | 1400 × 800 × 30 | 14–17 | 10 | 11.20 | 1.570 | 0.040 | 80 |
