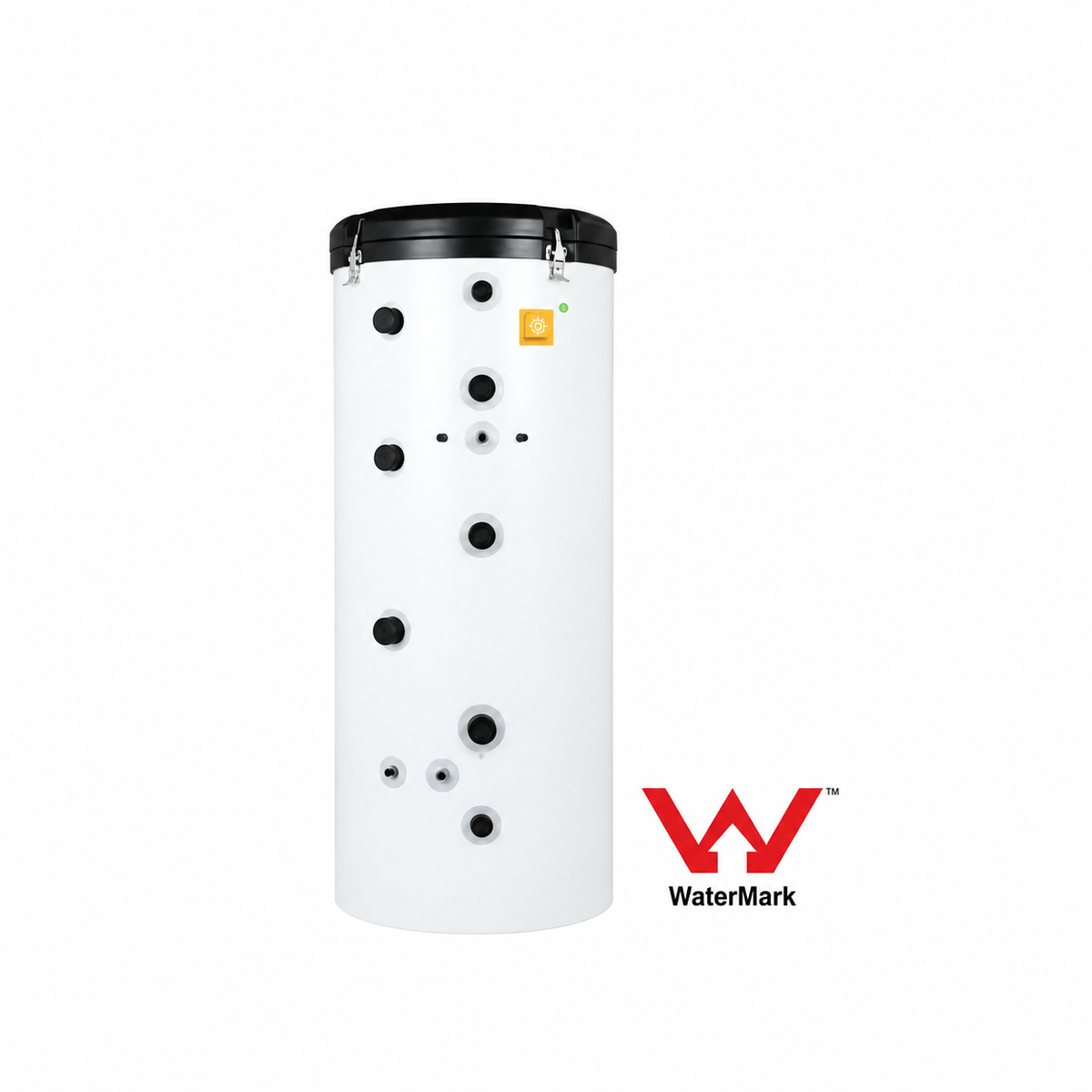

[SmartHeat] Aquacell SH-500 II Stainless Steel Thermal Storage & Heat Exchange Tank

SKU: SH-500II

$4,381.03 AUD

Taxes included.

In stock Pickup available 6/19 Chifley StreetSmithfield NSW 2164

Delivery

Contact us before ordering to check delivery options and charges for this item.

Ask about delivery
Need help choosing?

Contact our team with the product name or model and your project requirements.

Ask about this product

Product details

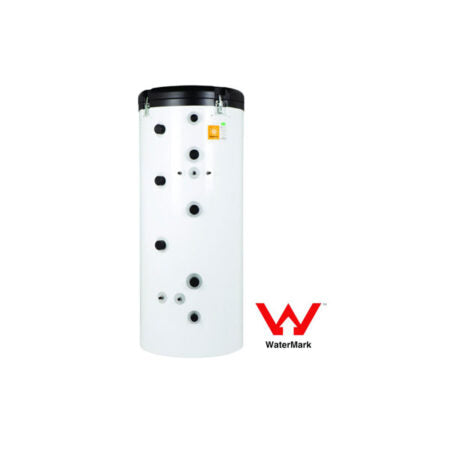

The SmartHeat Aquacell SH-500 II is a stainless steel thermal storage and heat exchange tank with a 460-litre storage capacity. Designed for systems combining multiple heat sources, it supports applications including hydronic underfloor heating, domestic hot water and pool or spa heating.

The tank combines a 2 mm 304 stainless steel inner vessel with 316L stainless steel helical corrugated heat exchangers and 75 mm insulation. Its configurable arrangement accommodates up to five internal coils, allowing the heat exchange layout to suit the connected heat sources and heating circuits.

The Aquacell can be incorporated into systems using solar thermal collectors, heat pumps, gas boosters or biomass and wood boilers. The product brochure provides configuration examples, system-specific performance tables and connection details.




Product Specifications

Features

Thermal storage

  • Storage capacity: 460 litres.
  • Maximum storage tank water temperature: 90°C.
  • Accommodates up to five internal coils, depending on configuration.

Tank construction

  • Inner tank: 2 mm 304 stainless steel.
  • Heat exchangers: 316L stainless steel helical corrugated tube.
  • Insulation thickness: 75 mm.
  • Outer casing: 0.5 mm steel with a white finish.
  • Polypropylene lid.

Heat source integration

  • Multiple heat source inputs.
  • System configurations for solar thermal collectors, heat pumps, gas boosters, and biomass or wood boilers.
  • Coil arrangement selected to suit the application.

Applications

  • Hydronic underfloor heating.
  • Domestic hot water.
  • Pool and spa heating.
  • Domestic and commercial system configurations illustrated in the brochure.

Ordering Information

Specify the intended application, connected heat sources and required heating circuits when enquiring about the Aquacell SH-500 II. Confirm the coil arrangement, connection requirements and supplied components before ordering.

The brochure illustrates several system configurations. Heat pumps, boilers, gas boosters, solar collectors and other components shown in these examples should not be assumed to be included with the tank.

Dimensions below follow the brochure specification table. The connection drawing separately shows a height of 1800 mm; confirm the installation dimensions for the supplied unit before planning clearances or pipework.

Ordering / Size Information

Ordering / Size Information
ModelStorage Capacity (L)Height (mm)Diameter (mm)Empty Weight (kg)Maximum Storage Water Temperature (°C)
Aquacell SH-500 II46018177609090

Warranty Information

Commercial applications

  • SmartHeat SH-500 II: 10 years.
  • SmartHeat heat exchanger: 3 years.

These periods are listed in the Aquacell brochure for commercial applications only. Refer to the manufacturer’s warranty for the applicable terms and conditions. Confirm the warranty applicable to your installation before ordering.
