[SmartHeat] SH-Mat (200w/sqm) 5.0mm Electrical Underfloor Heating DIY Kit with Wi-Fi Thermostat

$364.89 AUD incl. GST
$364.89 AUD incl. GST $0.00 AUD
Sale Sold out
Tax included.
Size: 1.0 m²
In stock (27 units), ready to be shipped
  • Heading
  • Heading
  • Heading
  • Heading
View Product Details

Product details

The SmartHeat SH-Mat Electric Underfloor Heating Kit combines a 200 W/m² heating mat with a Wi-Fi thermostat for convenient floor temperature control. Available in heated areas from 1 to 12 m², the range offers a choice of sizes to suit your planned heating layout.

The twin-conductor heating cable is specified as Zero EMF and features a single-point connection. Attached to an adhesive-backed fibreglass mesh, it maintains consistent cable spacing and allows for convenient roll-out positioning during installation.

Each kit includes a SmartHeat Wi-Fi room thermostat, floor temperature sensor, Screamer warning device and wall mounting box. The thermostat offers a digital display, 7-day programming and remote control through a compatible phone connection.

How to Install an Electric Underfloor Heating Mat (200W/m²)

This video shows the installation of the 200W/m² underfloor heating mat. Please refer to it to see how to lay out and install the mat properly.

Product Specifications

Features

Heating mat

  • Rated heating output: 200 W/m².
  • Twin-conductor heating cable, specified as Zero EMF.
  • Adhesive-backed fibreglass mesh for roll-out installation.
  • Pre-spaced heating cable for consistent spacing.
  • Available heated areas from 1 to 12 m².

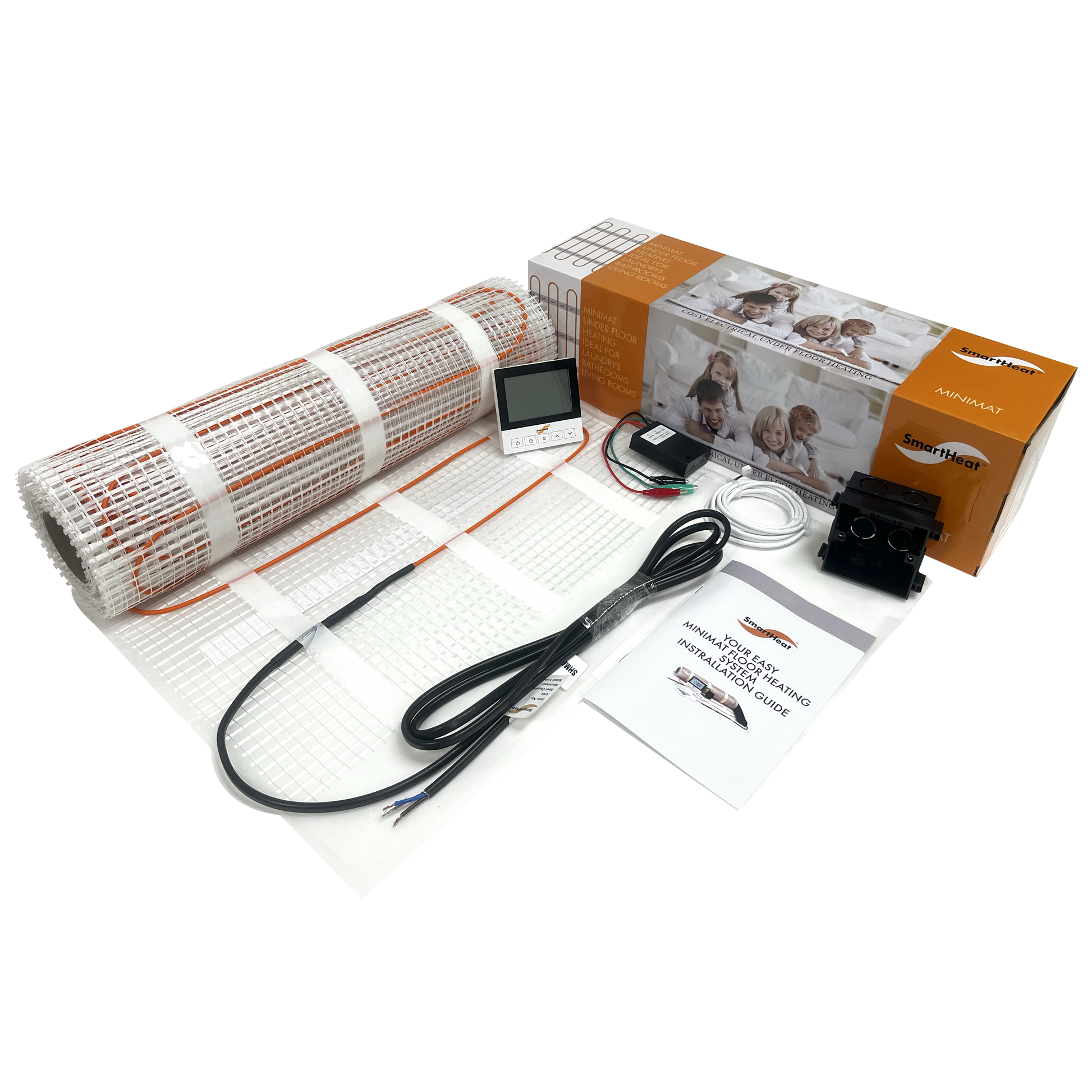

Included in the kit

  • SmartHeat SH-Mat heating mat in the selected size.
  • SmartHeat Wi-Fi room thermostat.
  • Floor temperature sensor.
  • Screamer warning device.
  • Wall mounting box.

Wi-Fi thermostat

  • On/off control with a digital display.
  • 7-day programmable operation.
  • Remote control via a compatible phone connection over Wi-Fi.
  • Supply voltage: 230 V ±15%, 50/60 Hz.
  • Battery backup.
  • Maximum switching current: 16 A.
  • Room temperature range: 5–60°C.
  • Floor temperature range: 5–35°C.
  • Floor sensor: 2-wire sensor with a 3 m lead.
  • Dimensions: 86 × 86 × 16 mm.

Ordering Information

Select the kit size according to your planned heated floor area.

Available sizes: 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0, 7.0, 8.0, 9.0, 10.0 and 12.0 m².

Each size includes the heating mat and the thermostat accessories listed under Product Features. Refer to the Ordering / Size Information table for the kit reference, mat dimensions, output, current and resistance.

Ordering / Size Information

Ordering / Size Information
Kit ReferenceHeated Area (m²)Mat Dimensions (m × m)Output (W)Current (A)Resistance (Ω)
SHMATK 200-1.01.00.5 × 22000.87264.5
SHMATK 300-1.51.50.5 × 33001.3176.3
SHMATK 400-2.02.00.5 × 44001.74132.2
SHMATK 500-2.52.50.5 × 55002.17105.8
SHMATK 600-3.03.00.5 × 66002.6188.2
SHMATK 700-3.53.50.5 × 77003.0475.6
SHMATK 800-4.04.00.5 × 88003.4866.1
SHMATK 900-4.54.50.5 × 99003.9158.8
SHMATK 1000-5.05.00.5 × 1010004.3552.9
SHMATK 1200-6.06.00.5 × 1212005.2244.1
SHMATK 1400-7.07.00.5 × 1414006.0937.7
SHMATK 1600-8.08.00.5 × 1616006.9633.1
SHMATK 1800-9.09.00.5 × 1818007.8329.4
SHMATK 2000-10.010.00.5 × 2020008.726.5
SHMATK 2400-12.012.00.5 × 24240010.4322.1

Warranty Information

Heating cable/mat: 20-year limited warranty against manufacturing defects.

Thermostat: 1-year warranty.

Documents and Downloads
