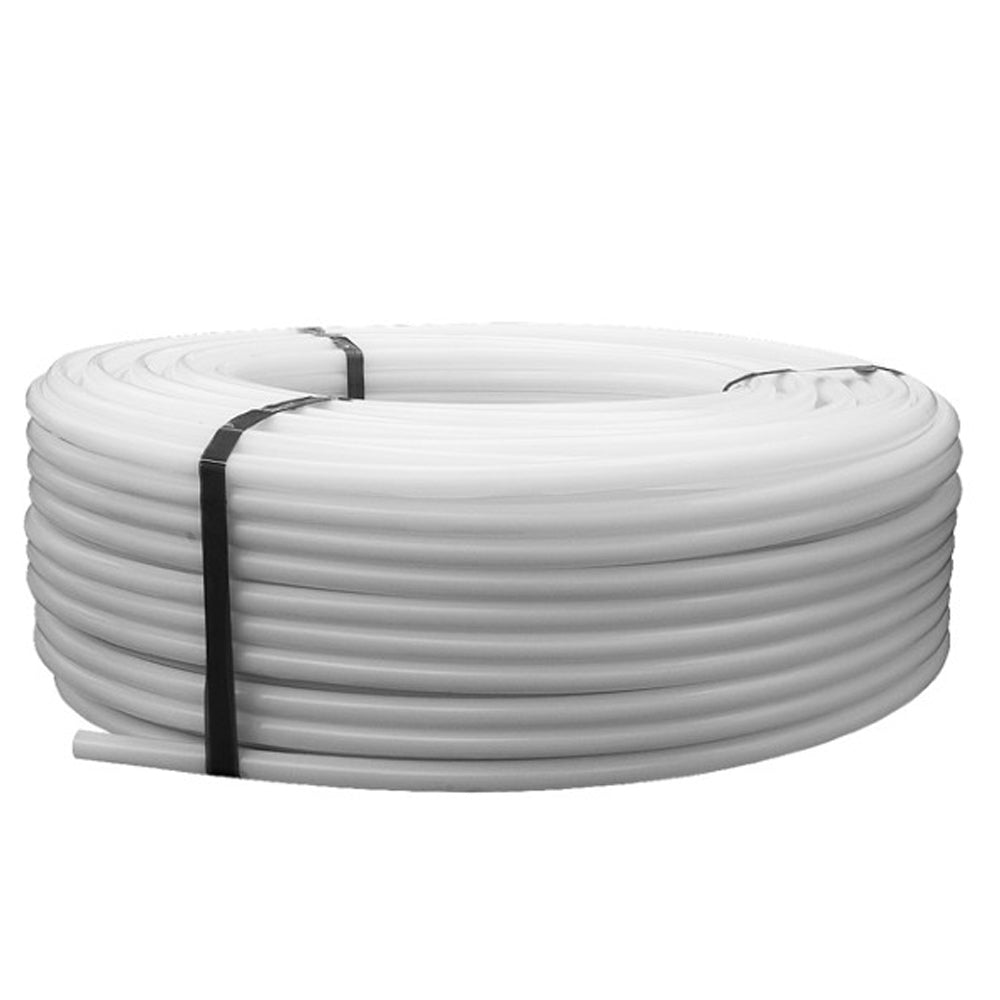

Maincor PE-RT Underfloor Heating Pipe – 300 m Roll

Name: Maincor PE-RT Underfloor Heating Pipe – 300 m Roll
Brand: Maincor
Price: 907.5 AUD
Availability: InStock

$907.50 AUD incl. GST

Sale Sold out

Tax included.

Contact for shipping

The shipping cost for this produc is available upon request.

Pipe Size: 16 × 2 mm

16 × 2 mm 16 × 2.2 mm 10 × 1.3 mm 20 × 2.25 mm

Roll Length: 300m

300m

Product variants

Only 5 units left

Heading
Heading
Heading
Heading

Secure checkout with

View Product Details

Product details

Maincor PE-RT pipe is designed for hydronic underfloor heating and supplied in 300 m rolls. Four pipe sizes are available for standard screed, thin screed, insulation and in-slab installations.

Its five-layer construction incorporates an EVOH oxygen barrier protected against mechanical damage. All layers are produced simultaneously through coextrusion, creating a homogeneous and stable bond. The PE-RT material provides long-term temperature stability without the need for crosslinking.

Product Specifications

Features: Five-layer construction
PE-RT inner and outer layers.
EVOH oxygen barrier protected within the pipe wall.
Adhesive layers bond the PE-RT layers to the oxygen barrier.
Simultaneous coextrusion creates a homogeneous and stable material bond.
Technical specifications
Material: Polyethylene of raised temperature resistance (PE-RT).
Working temperature: 70°C.
Maximum temperature: 95°C.
Maximum operating pressure at 70°C: 6 bar (ISO 10508).
Roll length: 300 m.
Pipe sizes and applications
16 × 2 mm: Standard pipe for in-screed and insulation installations.
16 × 2.2 mm: Thicker-wall pipe for in-slab installations.
10 × 1.3 mm: For thin screed installations.
20 × 2.25 mm: For large-scale and commercial in-slab installations.

Ordering Information

Available in four pipe sizes, each supplied as a 300 m roll. Select the required size using the Pipe Size option.

Pipe dimensions are shown as outside diameter × wall thickness. An order quantity of 1 is one 300 m roll of the selected size.

Maincor PE-RT Underfloor Heating Pipe – 300 m Roll

Product details

Product Specifications

Five-layer construction

Technical specifications

Pipe sizes and applications

Ordering Information
