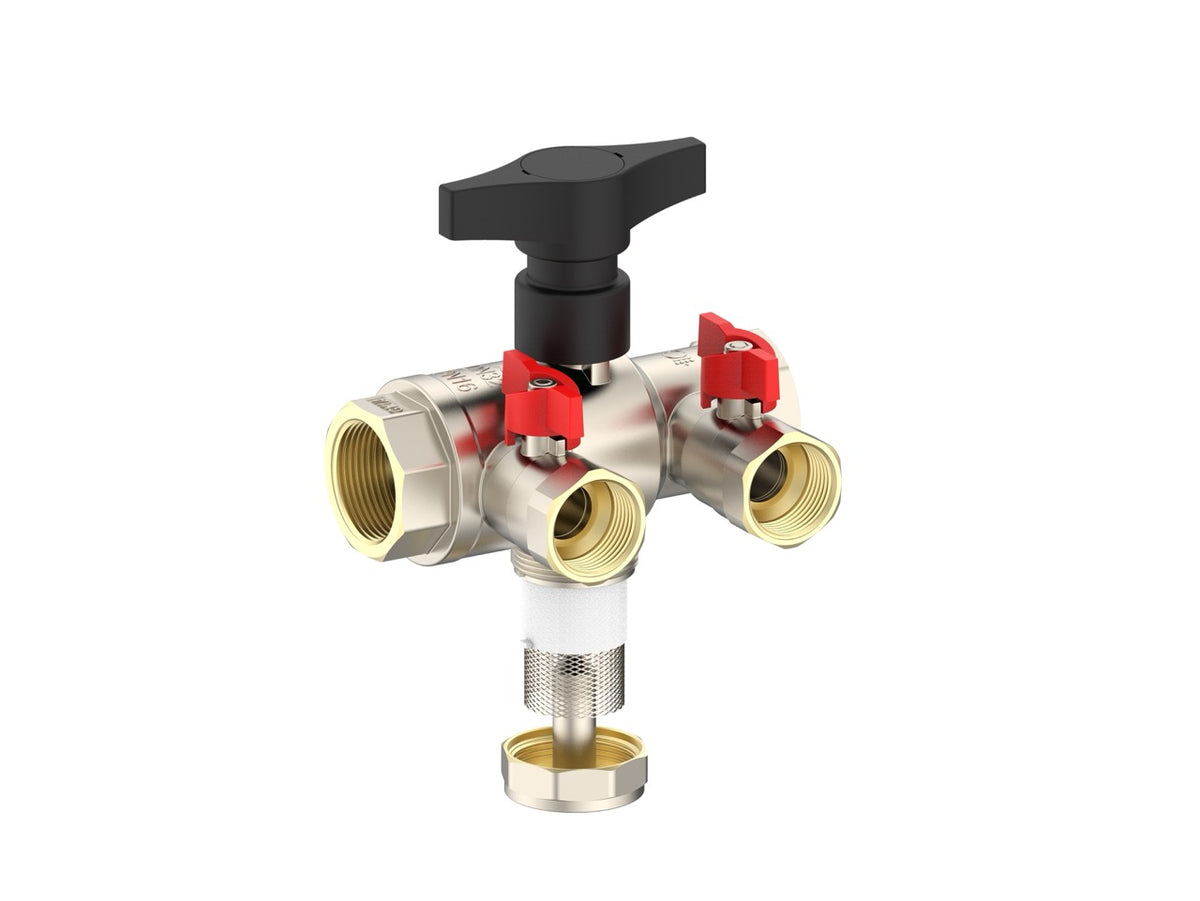

Fill and Flush Valve with Magnetic Strainer
A forged brass valve for system filling, flushing and chemical dosing, featuring a main shut-off valve, separate filling and drain ports, and a magnetic strainer with a 500 μm filter mesh.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 55 058485 01 |
| Body material | Forged brass |
| Maximum inlet pressure (static) | PN16 |
| Working temperature | 0–90°C |
| Temperature range | 0–100°C |
| Filter mesh size | 500 μm |
| Magnetic strength | 9,000–12,000 Gauss |
| Medium | Water or water/glycol mixture (1:1) |
Filling & Flushing
Flushing: Close the main valve to isolate the main pipe circulation. Connect a descaling pump to the filling and drain ports, then open the two small ball valves to flush the system.
Filling and chemical dosing: Open the main valve, connect to the filling valve, and introduce water or treatment chemicals.
