Bosch Condens 8300iW Gas Condensing Boiler

SKU: 8736200430

$3,135.12 AUD

Taxes included.

In stock Pickup available 6/19 Chifley StreetSmithfield NSW 2164

Delivery

Contact us before ordering to check delivery options and charges for this item.

Ask about delivery
Need help choosing?

Ask about product selection, compatibility or delivery availability. Include the product name or model and your project requirements.

Product & delivery enquiry

Product details

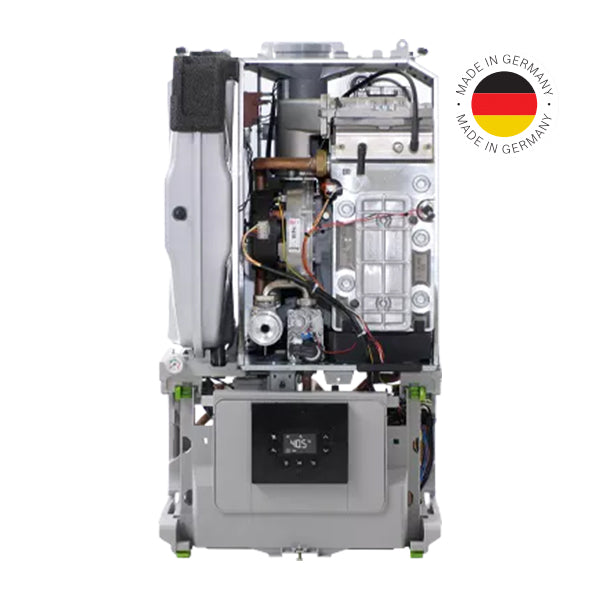

The Bosch Condens 8300iW is a wall-mounted gas condensing boiler range engineered and manufactured in Germany. With seasonal space heating energy efficiency of 94% at range-rated output and a burner modulation ratio of up to 1:10, it combines efficient hydronic heating with quiet operation and a clean, modern design.

Choose a 25kW or 35kW heating-only model, or the 35/40kW combi model for central heating and domestic hot water. The range offers indoor and outdoor installation configurations, with Natural Gas and LPG options. Indoor installations require additional flue components, while outdoor installations require the Bosch outdoor installation kit with its Australian-made casing and horizontal telescopic flue kit.

Installation guide - Bosch outdoor case

Product Specifications

Features

Heating performance

  • Engineered and manufactured in Germany.
  • Gas condensing technology.
  • Seasonal space heating energy efficiency at range-rated output: 94%.
  • Burner modulation ratio: up to 1:10.
  • Quiet operation.

Model range

  • GC8300iW 25 P: 25kW central heating output.
  • GC8300iW 35 P: 35kW central heating output.
  • GC8300iW 35/40 C: 35kW central heating output and 40kW domestic hot water output.
  • Natural Gas and LPG options.

Operating limits and dimensions

  • Maximum boiler temperature: 88°C.
  • Maximum central heating pressure: 2.5 bar.
  • Boiler dimensions (H × W × D): 780 × 440 × 365mm.
  • Outdoor casing dimensions (H × W × D): 1004 × 503 × 403mm.

Domestic hot water — Combi model only

  • Domestic hot water flow rate: 23.4 L/min at a 25°C temperature rise.
  • Minimum domestic hot water flow rate: 1.9 L/min.
  • Maximum permissible domestic hot water inlet pressure: 10 bar.

Controls and installation

  • Compatible with the Bosch CR50 Controller.
  • Indoor installation requires additional flue components.
  • Outdoor installation requires the Bosch outdoor installation kit.
  • Outdoor installation kit includes the casing and horizontal telescopic flue kit.
  • Outdoor casing manufactured in Australia from COLORBOND® steel.

Flue planning

  • Permissible flue length depends on the boiler model, flue diameter and routing.
  • Each additional 87° elbow reduces the permissible flue length by 1.5m.
  • Each additional elbow between 15° and 45° reduces the permissible flue length by 0.5m.
  • Refer to the applicable Bosch installation instructions for complete flue requirements.

Ordering Information

Select the boiler model, gas type and installation configuration to suit your system.

The 25kW and 35kW models provide central heating. The 35/40kW combi model provides central heating and domestic hot water. CH means central heating; DHW means domestic hot water.

Select “Boiler” for the boiler-only configuration, with additional flue components required for indoor installation. Select “incl Case & Flue” for the boiler with the Bosch outdoor installation kit, including the outdoor casing and horizontal telescopic flue kit.

The comparison below lists both configurations for each model and gas type. LPG-listed part numbers are identified as ULP in the Bosch brochure.

Ordering / Size Information

Ordering / Size Information
ModelGas optionCH output (kW)DHW output (kW)Boiler-only part numberBoiler + outdoor kit part number
GC8300iW 25 PNatural Gas25N/A77381010498736200430
GC8300iW 25 PLPG (ULP)25N/A87362004498736200502
GC8300iW 35 PNatural Gas35N/A77381010488736200440
GC8300iW 35 PLPG (ULP)35N/A87362004488736200501
GC8300iW 35/40 CNatural Gas354077381010478736200450
GC8300iW 35/40 CLPG (ULP)354087362004478736200500

Warranty Information

For domestic use:

  • Boiler: 2-year parts and labour warranty.
  • Heat exchanger: 5-year warranty on the heat exchanger part only.
